4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Name: 420mA HART KLD70 series microwave radar sensor module of Level Meter
Brand: KACISE
Price: 1 USD

Best 4-20mA / HART KLD70 series microwave radar sensor module of Level Meter wholesale

Brand Name : KACISE

Model Number : KLD70 series

Place of Origin : China (Mainland)

MOQ : 0-100

Price : US $440-1,360 / Pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 Piece/Pieces per Month

Packaging Details : Carton or customers requests available for the KLD70 series microwave radar sensor module of Level Meter

Certification : CE

Delivery Time : 5-8 work days

Measuring range : 6~30m

Accuracy : 5mm,10mm

Power supply : Two-wire (DC24V), Four-wire(DC24V/AC220V)

Output signal : 4-20mA / HART

Temperature : (-200~400)℃

Item : KLD70 series microwave radar sensor module of Level Meter

liquid medium : Water, sea water, sewage, chemical liquids, bases, oil,

Sanitary/food-grade liquids : Milk, beer, juice, alcohol, red wine, white wine, iodine.

Oil liquid : Gasoline, diesel, fuel, palm oil, soybean oil, peanut oil .

Solid medium : Powder, granule , corn, beans, bran, wheat husk, coal ash, coal.

Contact Now

KLD70 series microwave radar sensor module of Level Meter

We also produce 6G radar level meter and 26G HF radar level meter.

Introduction

KLD70 series microwave radar sensor module of Level Meter is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Operation Principle

High-frequency microwave pulses issued by the guided wave radar propagate along detection components (steel cable or steel rod), met the media to be measured, since the dielectric constant of the mutation, cause reflections, a portion of the pulse energy is reflected back. Transmit pulse and the reflected pulse is proportional to the distance and the time interval measured media.

Features of guided wave radar

1).As a result of advanced microprocessor and unique echo processing technology, microwave radar sensor module of Level Meter can be used in a variety of complex conditions.
2).Because of the type of process connections and detection components, making KLD70 series microwave radar sensor module of Level Meter is suitable for a variety of complex conditions and applications. Such as: high temperature, high pressure and low dielectric constant media.
3).Pulsed work, microwave radar sensor module of Level Meter instruments transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment.

Parameters

KLD701

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Suitable for Medium: Liquid, solid powder

Application: Liquid and solid powder measure, complicated process conditions

Explosion-proof Grade: Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range: 30m

Frequency: 500MHz-1.8GHz

Antenna: Single cable or single rod antenna

Accuracy: ±10mm

Process Temperature:(-40~250)℃

Process pressure:(-0.1~4)MPa

Signal output:(4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread

KLD702

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Suitable for Medium: Liquid with high corrosive

Application: Acids, bases or other corrosive media

Explosion-proof Grade: Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:20m

Frequency: 500MHz-1.8GHz

Antenna: Full PTFE sealing cable type or rod antenna

Accuracy:±10mm

Process Temperature:(-40~200)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread

KLD703

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Suitable for Medium: Solid powder

Application: Cement silo powder measure; Ash powder measure

Explosion-proof Grade: Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:30m

Frequency: 500MHz-1.8GHz

Antenna: Double cable type antenna

Accuracy:±10mm

Process Temperature:(-40~150)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread

KLD704

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Suitable for Medium: Liquids, particularly low dielectric constant liquid

Application: Measuring deionized water,deoxygenated water and other liquids

Explosion-proof Grade: Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:6m

Frequency: 500MHz-1.8GHz

Antenna: Coaxial tube type antenna

Accuracy:±5mm

Process Temperature:(-40~250)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Thread / Flange (optional)

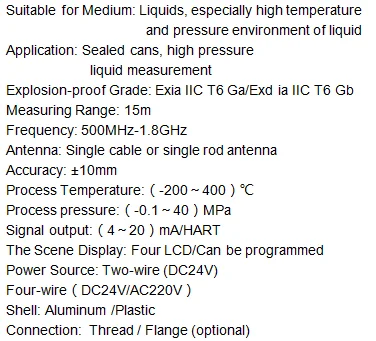

KLD705

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Production Flow

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Packaging & Shipping

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Cases

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Certificates

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

Our Services

Your inquiry will be replied in 24hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
OEM&ODM, we can help you to design and your request will be put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
Discounts are offered based on order quantities.
We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
